Geist assembly guide

Geist's assembly follows a few principles which dictate the design and vice versa.

First off it's visibly screwless in order to emphasize its monolithic aesthetics.

Another feature is the optional screwless assembly which was designed in order to quickly test builds before committing to a final build.

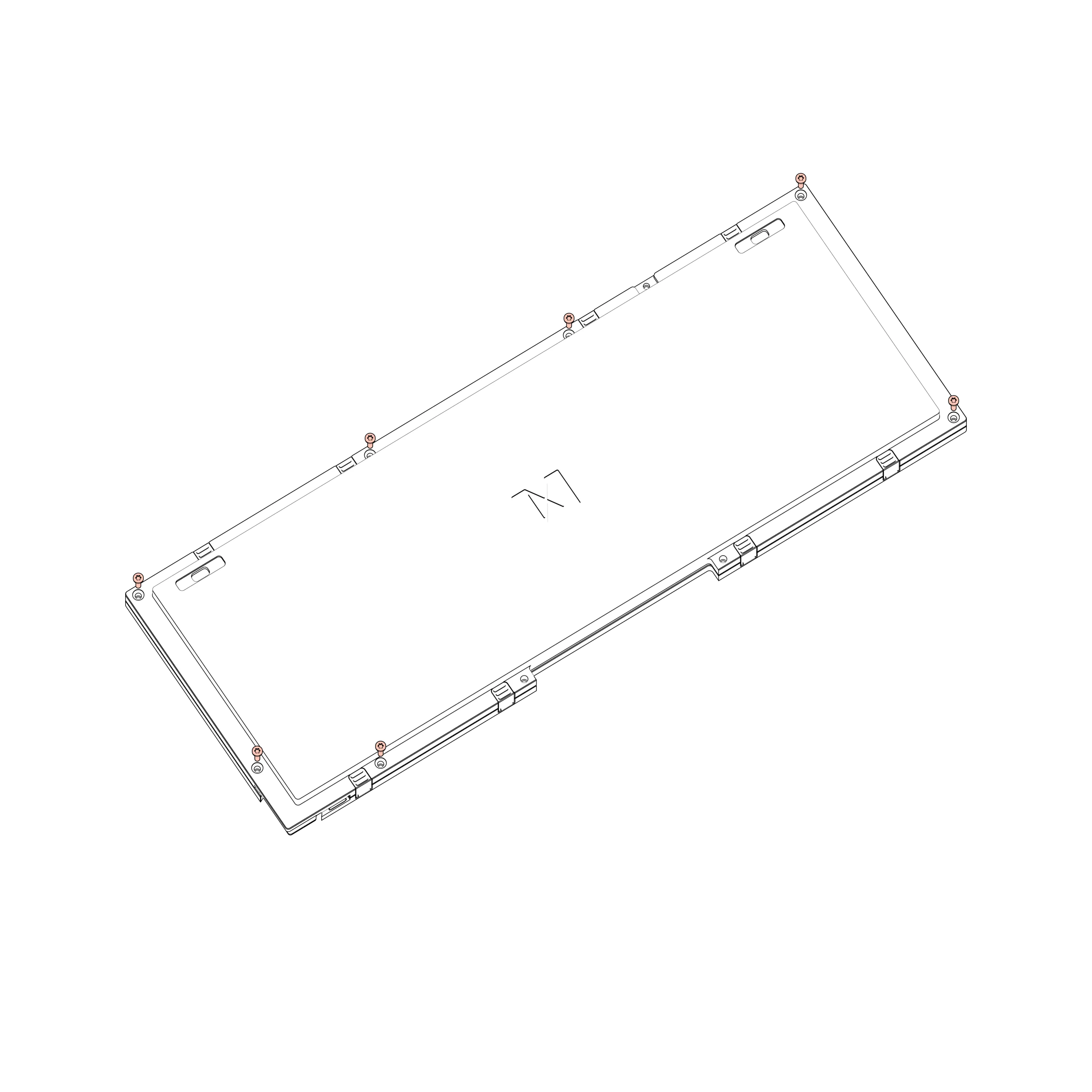

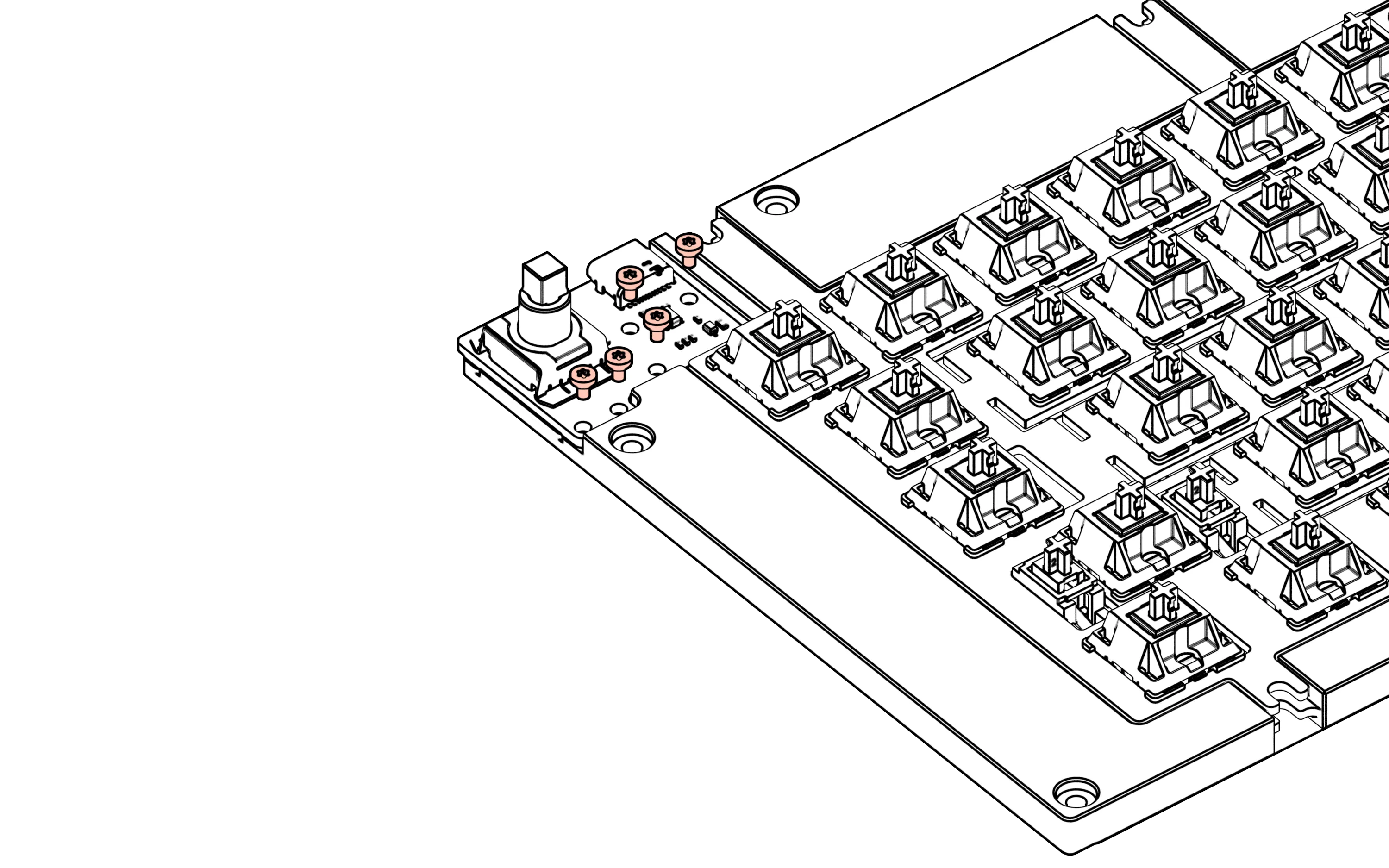

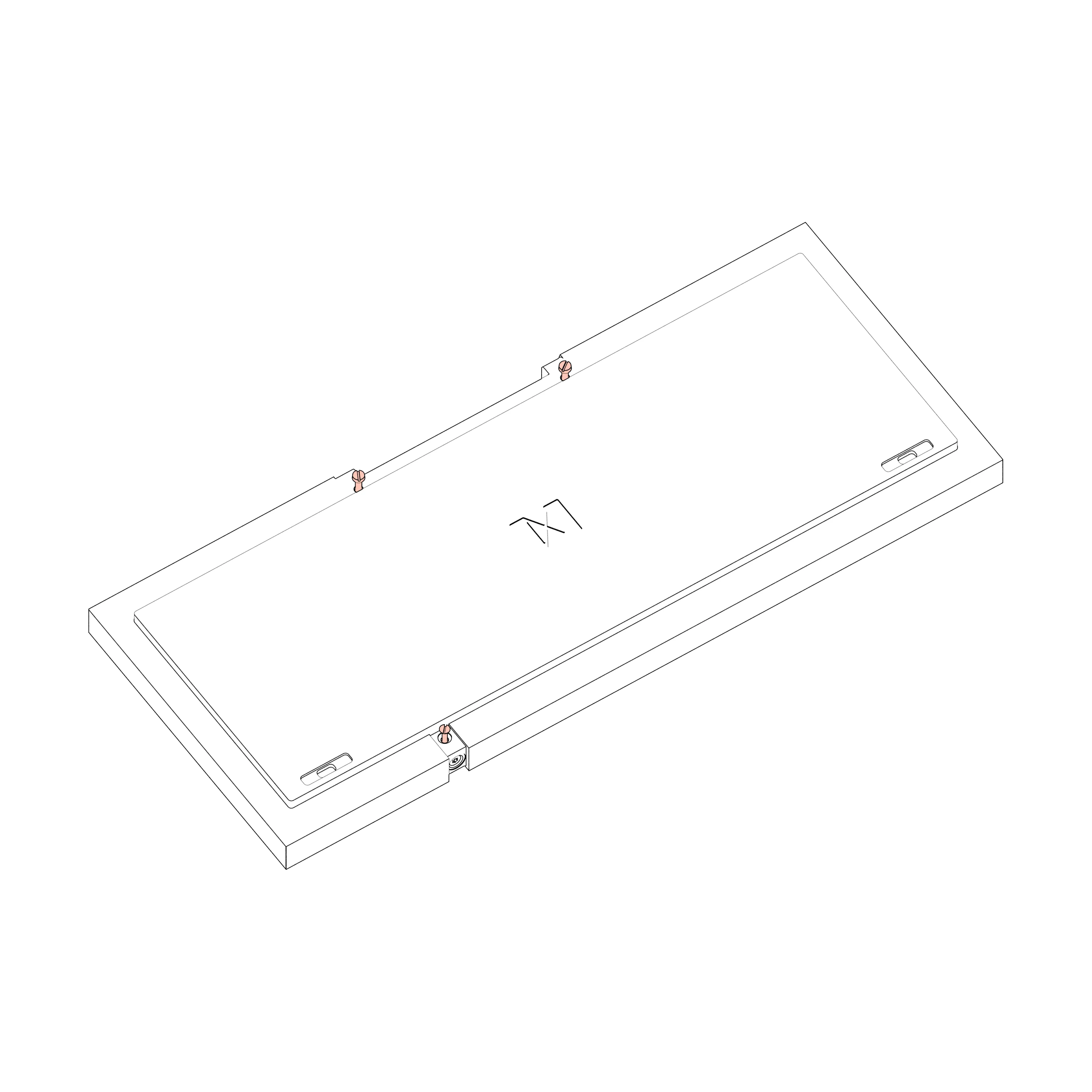

If you opt for a screwless assembly simply follow the guide but skip all M2.5 and M3 screws.

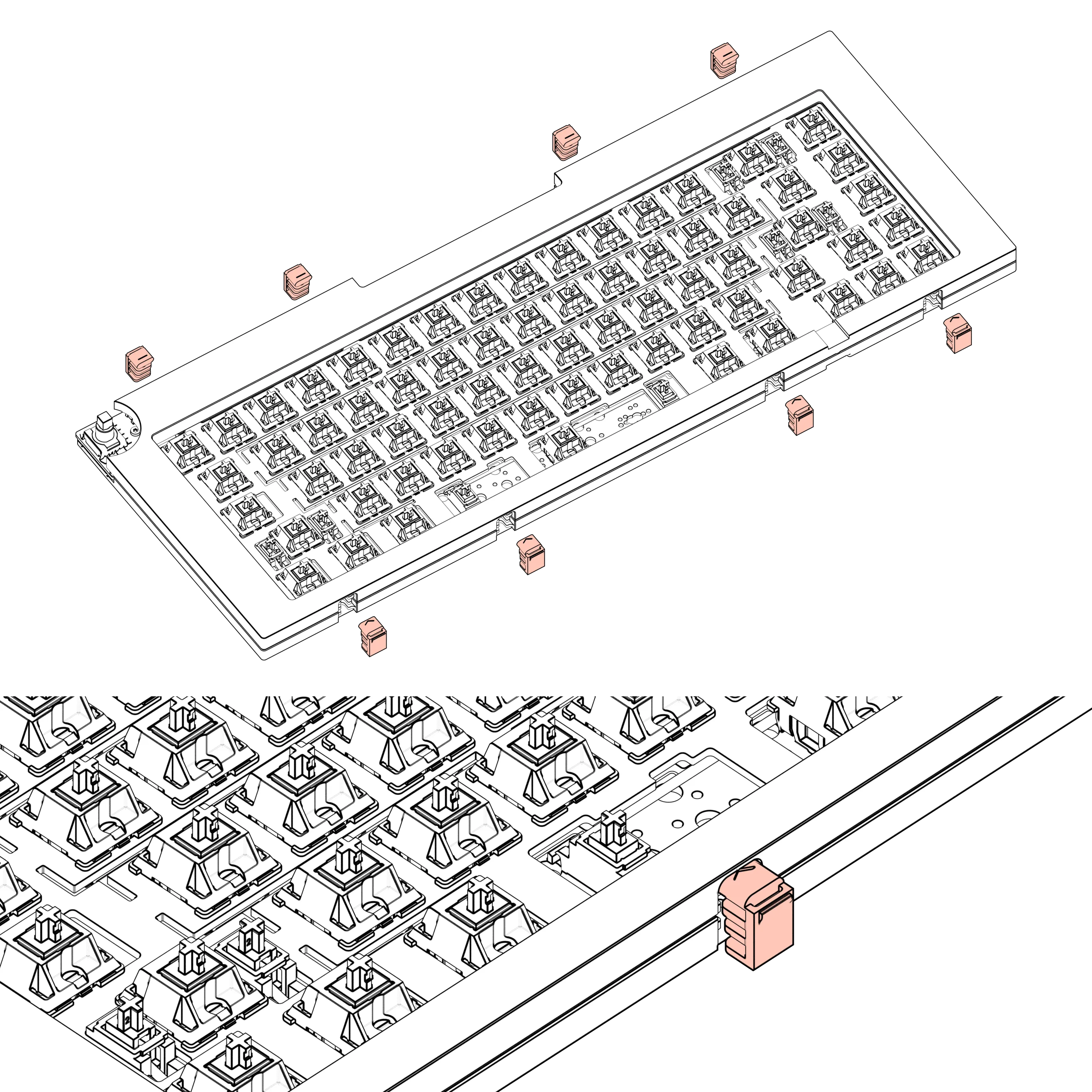

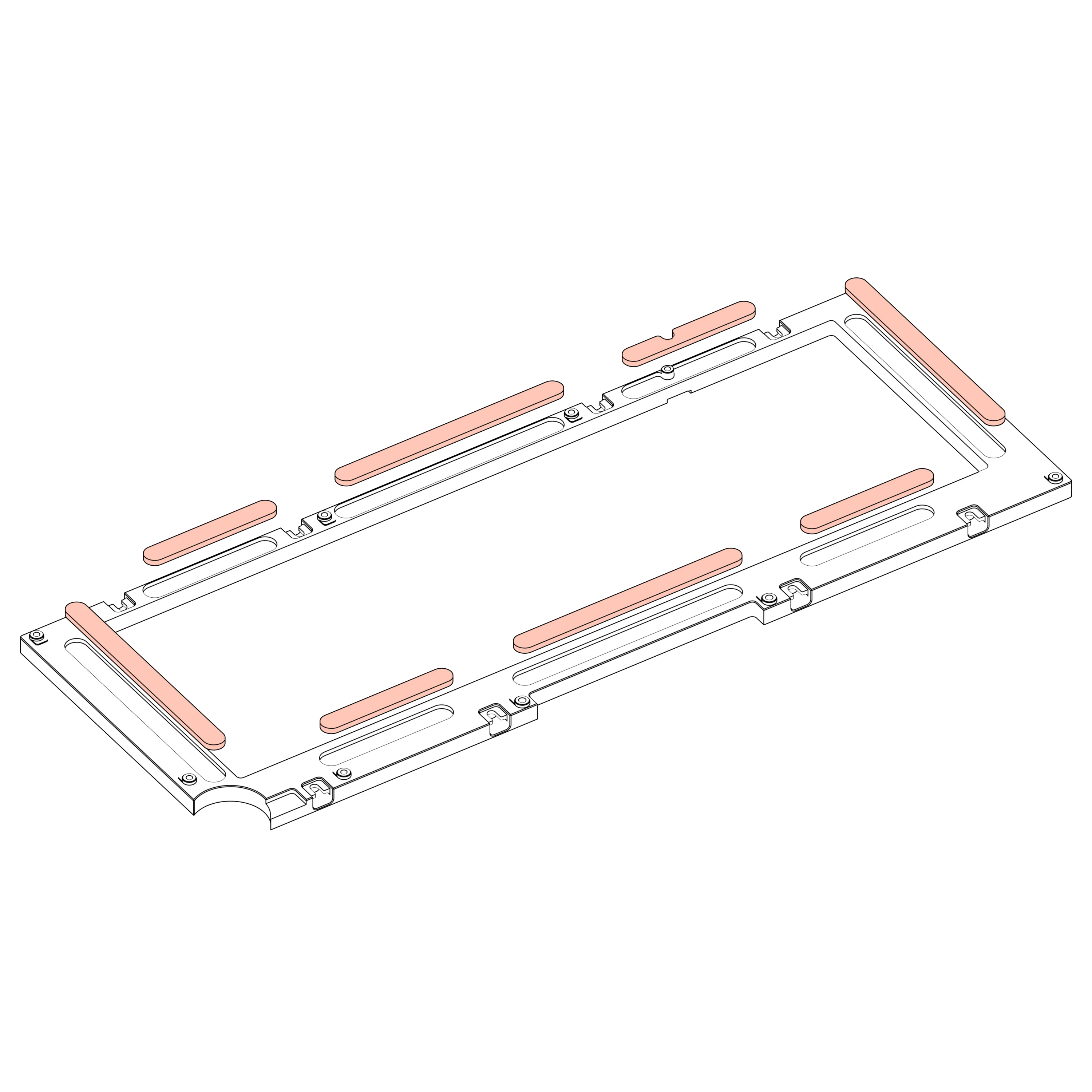

Don't worry - the assembly is held together by the silicon brackets.

Enjoy the process.
